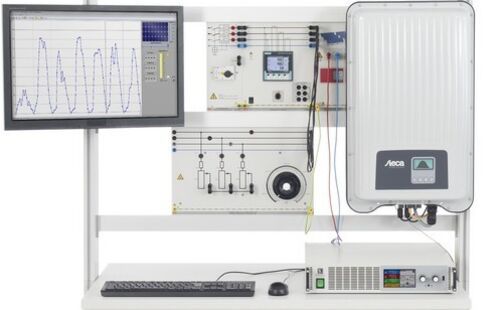

EPH 3.2 Configuration of photovoltaic systems to operate in parallel with the electricity grid

EPH 3.2 Configuration of photovoltaic systems to operate in parallel with the electricity grid

Training contents:

  • Installation of photovoltaic systems
  • Set-up and testing of a photovoltaic system with feed to the power grid
  • Measurement of energy generated by photovoltaic systems
  • Maximum Power Point (MPP) Tracking
  • Limiting the power of the photovoltaic inverter (derating)
  • Provision of reactive power
  • Determining the efficiency of the power grid inverter
  • Response to control of the power grid inverter
  • Recording output data using sun passage emulator
  • Investigating the response of a photovoltaic system when there is a power outage on the grid
  • Lightning protecting for photovoltaic systems
  • Economic benefits of photovoltaic systems
Basic equipment set, consisting of:
1
Solar panel emulator, 1.5 kW, 500 V
Solar panel emulator, 1.5 kW, 500 V CO3208-1P
1
3-phase industrial photovoltaic inverter
3-phase industrial photovoltaic inverter CO3208-1Q
Media:
1
Interactive Lab Assistant: Professional Photovoltaic Systems
Interactive Lab Assistant: Professional Photovoltaic Systems SO2800-6V
Software:
1
Software SCADA Viewer
Software SCADA Viewer SO4001-3H
1
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow LM9057
1
USB 2.0 Ethernet adapter, 10/100
USB 2.0 Ethernet adapter, 10/100 LM8257
1
5-Port Ethernet Switch
5-Port Ethernet Switch LM9988
Power supply:
1
Three-phase supply for electrical machines
Three-phase supply for electrical machines CO3212-5V
1
Multiple socket outlet, 6 fold, with illuminated switch
Multiple socket outlet, 6 fold, with illuminated switch ST8010-4J
Measuring instruments:
1
Power-Multimeter
Power-Multimeter CO5127-2A
1
Three-phase power quality meter, display and long-term memory
Three-phase power quality meter, display and long-term memory CO5127-1S
Accessories:
1
Double busbar unit, three-phase, incoming / outgoing feeder
Double busbar unit, three-phase, incoming / outgoing feeder CO3301-5R
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
5
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
5
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Set of safety measurement cables, 4mm, 31 pcs
Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
1
Set of safety measurement cables, 4mm, 10m, 5 pcs, incl. fastening
Set of safety measurement cables, 4mm, 10m, 5 pcs, incl. fastening SO5148-1Z
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm) ST7200-4C
1
Protected power distribution for working stations
Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Display for Photovoltaic Professional equipment
Display for Photovoltaic Professional equipment ST8000-4G
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
Keyboard adapter for flat screen monitor holders ST8010-4G
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
