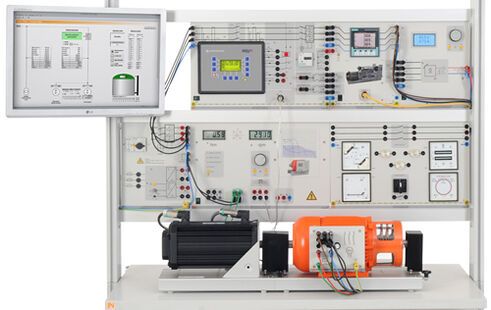

EGP 1 Basic generator protection equipment set

EGP 1 Basic generator protection equipment set

Training contents:

Time overcurrent protection

  • Operating response and release response for single-pole and three-pole faults
  •  Determining the tripping times

Unbalanced load protection

  • Operating and release response to unbalanced load
  • Determining the reset ratio and the tripping times
  • Determining the relay characteristic TA = f(unbalance)

Reverse power protection

  • Synchronisation of the generator to the power grid
  • Detection and disabling of the generator in the case of reverse power flow

Overvoltage and undervoltage protection

  • Reactions to phase failure
  • Detection of starting and tripping times

Stator-earth fault protection

  • Detection of system voltages under normal operating conditions or stator-earth fault occurrence
  • Measurement of tripping times
  • Calculation of the earth-fault current
Basic equipment set, consisting of:
1
Multi-function relay, power controller, cos-phi controller, synchronizing unit
Multi-function relay, power controller, cos-phi controller, synchronizing unit CO3301-5W
1
Three-phase synchronous machine with smooth core rotor, 1 kW
Three-phase synchronous machine with smooth core rotor, 1 kW SE2682-5Q
1
Variable Ohmic load, three-phase, 1kW
Variable Ohmic load, three-phase, 1kW CO3301-3F
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve for 1kW machines
Rubber coupling sleeve for 1kW machines SE2662-6A
1
Coupling guard with LED lighting for 1kW machines
Coupling guard with LED lighting for 1kW machines SE2662-7D
Media:
1
Interactive Lab Assistant: Generator protection
Interactive Lab Assistant: Generator protection SO2800-3U
Software:
1
Software SCADA Viewer
Software SCADA Viewer SO4001-3H
1
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow LM9057
1
USB 2.0 Ethernet adapter, 10/100
USB 2.0 Ethernet adapter, 10/100 LM8257
1
5-Port Ethernet Switch
5-Port Ethernet Switch LM9988
Power supply:
1
Three-phase power supply with motor protection switch
Three-phase power supply with motor protection switch CO3212-5V
1
Motor protection switch, 3 pole, 1.8-2.5A
Motor protection switch, 3 pole, 1.8-2.5A CO3212-1P
1
Exciter voltage controller with de-excitation
Exciter voltage controller with de-excitation CO3301-5G
1
Multiple socket outlet, 6 fold, with illuminated switch
Multiple socket outlet, 6 fold, with illuminated switch ST8010-4J
Measuring instruments:
1
HMI (Human Machine Interface) for generators
HMI (Human Machine Interface) for generators CO3301-5L
Accessories:
40
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Set of safety measurement cables, 4mm, 31 pcs
Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
1
Protected power distribution for working stations
Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
Keyboard adapter for flat screen monitor holders ST8010-4G
1
Display for Power Generation equipment
Display for Power Generation equipment ST8000-4J
1
ST7200-5L
