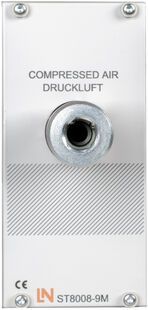

Pneumatic panel, push-button safety coupling NW 7.4 (12PU)

19" duct plug-in unit compressed air supply, NW 7.4

High-quality, robust and durable quick-release coupling in safety design that can be operated with one hand.
The first time it is pressed, the coupling is deflated and the plug remains secured in the coupling. After the second press, the plug is released.
This prevents the notorious "whiplash effect" and virtually eliminates the risk of injury to operating personnel.

• Push-button safety coupling NW 7.4, rotatable
• Aluminium, G 1/4 AG
• Operating pressure 12bar
• Medium/ambient temp. -20°C to 70°C
• The safety version complies with the ISO standard DIN EN ISO 4414.
• Areas of application: Pneumatics, mechanical and plant engineering, manufacturing industry, workshops, automotive
• Outlet NW 7.4 quick-release safety coupling
• Rack dimensions: 3HU/12PU, depth: 52mm = protrusion of the coupling to the front
• Weight: 0.2kg
