IMS 20 Guided Assembly Substation

IMS 20 Guided Assembly Substation

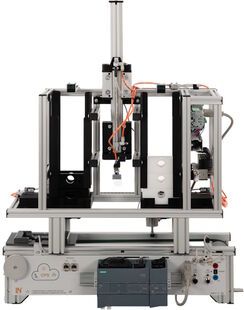

There is a workpiece carrier on the conveyor belt. The workpiece carrier is positioned under the 'Guided assembly' station. An individual part can be separated from two magazines, sucked in and finally mounted on the workpiece carrier. Several sequences in succession are possible for assembling a product with a lower and upper part. The loaded workpiece carrier moves to the end of the conveyor belt where it is taken over by the next subsystem.

Training contents:

Assembly, set-up and testing of pneumatic cylinders and valves
Introduction to sub-systems for workpiece substructures
Defining processes for sorting
Programming of production sequences in manual and automatic modes

Weboffer

0 Article

Real Experience Learning

Interactive learning environment

Downloads

Equipment
Specifications

Tender specifications

Equipment set comprising the following:
1	Cyber physical conveyor system with PLC	LM9515
1	Guided assembly double station	LM9649
1	Symmetrical workpiece transport pallet	LM9532
2	Workpiece, bottom section, white	LM9524
2	Workpiece, bottom section, black	LM9525
2	Workpiece, top section, white	LM9521
2	Workpiece, top section, black	LM9522

Media:
1	Interactive Lab Assistant: IMS 1 Cyber Physical Conveyor Belt System	SO2805-5H
1	Interactive Lab Assistant: IMS X Mechatronic Basic Stations	SO2805-5X
1	QuickChart IMS 1.5 Cyber-physical conveyor belt system	SO6200-2P
1	QuickChart IMS 20 Mechatronics Guided assembly double station	SO6200-2T

Accessories:
1	SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm	ST7200-7A
1	DC power supply 24 V/5 A for IMS conveyor belts	LM9672
1	Interface cable 25-pin, Sub-D socket / plug 1m	LM9066

Additionally recommended:
1		Compressor, low-noise	SE2902-9L
1		Tubing and accessory set for mechatronics systems	LM9571
1		Monitor holder for flat screen monitor of weight up to 15kg/33lbs	ST8010-4T
1		Protection cover for three-level experiment trolleys	ST7200-5L
1		Set of Allen keys	LM9716
	In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid... more In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid condensation: less
1		IDG3 membrane dryer with rapid coupling and filter AF20 with water trap	LM9671
