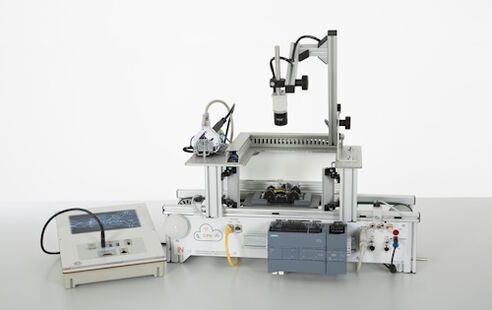

IMS 19 Subsystem quality control with AI

IMS 19 Subsystem quality control with AI

Weboffer

Downloads

Equipment
Specifications

Tender specifications

Equipment set comprising the following:
1		Cyber physical conveyor system with PLC		LM9515
1		Camera for AI		LM9648
1		IMS displacement measurement module		LM9677
1		AI control unit		CO3620-3A
1		Symmetrical workpiece transport pallet		LM9532

Accessories:
1		DC power supply 24 V/5 A for IMS conveyor belts		LM9672
1		Interface cable 25-pin, Sub-D socket / plug 1m		LM9066

Media:
1		Interactive Lab Assistant: IMS 1 Cyber Physical Conveyor Belt System		SO2805-5H
1		Interactive Lab Assistant:		SO2805-5T
1		QuickChart IMS 1.5 Cyber-physical conveyor belt system		SO6200-2P
1		QuickChart IMS 19 Mechatronics AI Quality Control sub-system		SO6200-2Y

Additionally recommended:
1		Compressor, low-noise		SE2902-9L
1		Tubing and accessory set for mechatronics systems		LM9571
1		Set of Allen keys		LM9716
1		Mechatronics experiment trolley with 2 level frame 1200x760x900mm WxHxDxD		ST7200-3T
1		Monitor holder for flat screen monitor of weight up to (10kg / 22lbs)		ST8010-4K
1		Protective cover for 1200mm wide IMS experiment trolleys with training panel		ST8010-8L
	In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid... more In areas where there are high levels of humidity the membrane dryer with water trap should be used to avoid condensation: less
1		IDG3 membrane dryer with rapid coupling and filter AF20 with water trap		LM9671

Optional Accessories:
1		Touch Panel KTP700 Basic Trainer Package		CO3713-4Q
1		IMS manual control unit		LM9638
