Set of cars for the production line

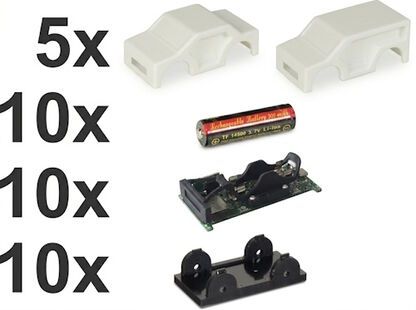

Set of car parts comprising chassis, bodywork, function boards and batteries for a total of 10 complete cars.

Chassis:

Chassis for assembling a complete car.

The chassis has four mounting and fixing pins for the precise positioning of the corresponding function board. Two centrally mounted magnets activate the function board when it is inserted. Four magnets fitted to the outside are used to secure the car body. Standard axles and wheels from various building block manufacturers can be fitted into the side holes.

Car body:

Car and van bodies for completing an assembled car.

Four iron pins are pressed into the car body. The two parts are held together by the magnets in the chassis.

Function board:

Function board with display, RFID tag, Wi-Fi chip, RGB LEDs and horn function.

The board connects to an ERP system via an existing Wi-Fi network and logs in to it. The board can display a pre-set colour for the car via 4 RGB LEDs (the car is painted). Additional function LEDs serve as headlights, rear lights and indicators. A buzzer mounted on the board can be used to play signal tones as a horn. Different melodies can be programmed and played as a horn signal via the board’s controller.

A display serves as a ‘number plate’ and can be freely labelled.

A 3.7 V rechargeable battery can be charged via the USB socket or via two contact points on the underside of the circuit board. A charging cradle can be used for charging via the contact points.

Technical specifications:

1 display

4 RGB LEDs

2 white LEDs (headlights)

2 red LEDs (tail lights)

4 yellow LEDs (indicators)

3 status LEDs

2 control buttons

Controller

Wi-Fi module

RFID tag

Battery holder

Integrated charge control

Buzzer
