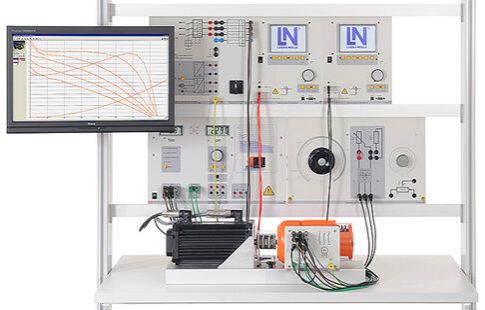

EEM 4.4-1 Three-phase motor with slip-rings (slip-ring rotor) 1kW

EEM 4.4-1 Three-phase motor with slip-rings (slip-ring rotor) 1kW

In contrast to squirrel-cage rotors, slip-ring rotors have a rotor equipped with wound coils. These can be connected to resistors or static converters via slip-rings. Speed adjustment is performed via these connection terminals.

Training contents:

  • Connection, wiring and putting into operation
  • Speed adjustment by modifying the resistance across the rotor
  • Recording of the speed-torque operating response
  • Operation with various load machines such as ventilators, hoisting machinery

Weboffer

 0 Article
Equipment set / product

Basic equipment set, consisting of:
1
Three-phase multi-function machine, 1 kW
 Three-phase multi-function machine, 1 kW SE2682-6W
1
Starter for slip-ring motors, 1kW
 Starter for slip-ring motors, 1kW CO3212-6D
1
Cut-out switch, 4 poles
 Cut-out switch, 4 poles CO3212-1W
Media:
1
Interactive Lab Assistant: Asynchronous motor with Slip-ring rotors, 1 kW
 Interactive Lab Assistant: Asynchronous motor with Slip-ring rotors, 1 kW SO2805-2D
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
Power supply:
1
Three-phase power supply with motor protection switch
 Three-phase power supply with motor protection switch CO3212-5V
Measuring instruments:
1
Power-Multimeter
 Power-Multimeter CO5127-2A
Accessories:
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Display for Drive Technology equipment
 Display for Drive Technology equipment ST8000-5C
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Protection cover for three-level experiment trolleys
 Protection cover for three-level experiment trolleys ST7200-5L
