EDT 51-1 Motor management relays 1kW

EDT 51-1 Motor management relays 1kW

Training objectives:

  • Configuration and operation (computer based)
  • Programming of basic functions:
    direct starter motors, star-delta starting, motor protection, overload limits, switch-off behaviour
  • Investigation of operating response
  • Measurement of power and RMS values
  • Load experiments
  • Determination of operating points
  • Measurement of dynamic processes during start-up

Weboffer

 0 Article
Equipment set / product

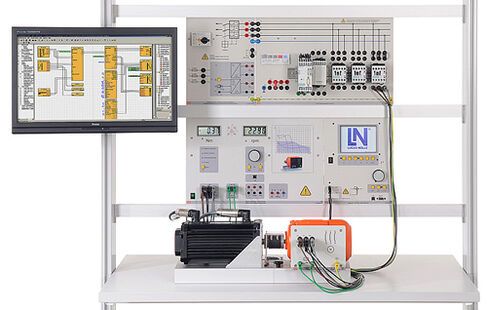

Basic equipment set, consisting of:
1
Motor management relay with parameter setting software
Motor management relay with parameter setting software CO3636-6D
1
Three-phase asynchronous motor, squirrel-cage, 1 kW,, 690/400 V
 Three-phase asynchronous motor, squirrel-cage, 1 kW,, 690/400 V SE2683-1R
Media:
1
Interactive Lab Assistant: Controlling motor1s with motor management relays 1 kW
 Interactive Lab Assistant: Controlling motor1s with motor management relays 1 kW SO2805-2V
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve, 1kW
Rubber coupling sleeve, 1kW SE2662-6A
1
Coupling guard 1 kW with LED lighting
 Coupling guard 1 kW with LED lighting SE2662-7D
Power supply:
1
Three-phase supply for electrical machines
 Three-phase supply for electrical machines CO3212-5V
Measuring instruments:
1
Power-Multimeter
 Power-Multimeter CO5127-2A
Accessories:
1
Set of safety measurement cables, 4mm (31 leads)
Set of safety measurement cables, 4mm (31 leads) SO5148-1L
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49"x28"x79" WxDxH (1250x700x1995mm)
 Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49"x28"x79" WxDxH (1250x700x1995mm) ST7200-4C
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
1
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs
 Monitor holder for flat screen monitor of weight up to 15kg / 33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
 Keyboard adapter for flat screen monitor holders ST8010-4G
