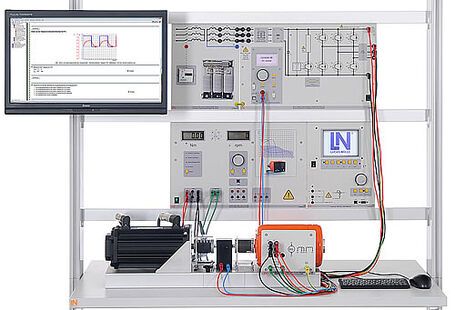

EPE 43-1 Converter drives with DC motor 1kW

EPE 43-1 Converter drives with DC motor 1kW



Thanks to their simple control structure, inverter-fed drives with DC motors are ideally suited to serve as an introduction to the subject of speed-variable drives. By considering closed-loop current control and speed control separately, students are able to put the controller into operation and optimize it step-by-step. The training system graphically demonstrates how a speed-variable system operates.

Training contents:

  • Open-loop speed control in single quadrant operating mode
  • Open-loop speed control in four quadrant operating mode
  • Closed-loop speed control
  • Closed-loop current control
  • Automatic cascade control
  • Computer-assisted analysis of controlled systems and controllers
  • P, PI controller parametrization
  • Controller optimization

Weboffer

 0 Article
Equipment set / product

Supplementary equipment set for EPE 40-1 - Self-commutated converters, consisting of the following:
1
DC multi-circuit, compound wound machine, 1 kW
DC multi-circuit, compound wound machine, 1 kW SE2682-5D
1
Tachogenerator 1 V/1000 rpm, 1 kW
 Tachogenerator 1 V/1000 rpm, 1 kW SE2682-5U
1
Regulating transformer, exciter 0-200 V
 Regulating transformer, exciter 0-200 V CO3212-5Q
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
Media:
1
Interactive Lab Assistant: Inverter-fed drives with DC motors 1 kW
 Interactive Lab Assistant: Inverter-fed drives with DC motors 1 kW SO2805-2N
Measuring instruments:
1
Power-Multimeter
 Power-Multimeter CO5127-2A
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
Accessories:
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Display for Power Electronics equipment
 Display for Power Electronics equipment ST8000-5B
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Protection cover for three-level experiment trolleys
 Protection cover for three-level experiment trolleys ST7200-5L
