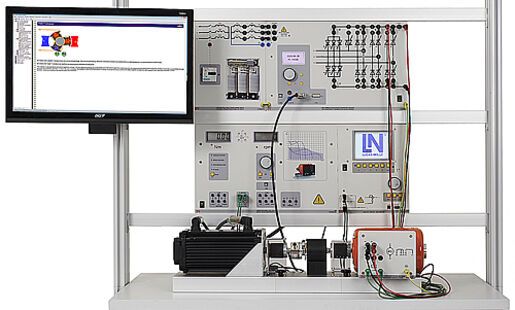

EPE 31-1 Converter drives with DC motors 1kW

EPE 31-1 Converter drives with DC motors 1kW



Variable-speed DC drives excel thanks to their very good speed and torque controllability and extremely high dynamic response. When it comes to power semiconductors operating with large-scale drives at high power levels, one resorts to line-commutated converters with thyristors. These components stand out because of their capacity to handle overload and their low tendency for power losses.

Training contents:

  • Closed-loop speed control in the 1st and 4th quadrant with and without cascade current control
  • Energy recovery
  • Closed-loop speed control, current control, cascade control, adaptive control
  • Computer-assisted controlled system and controller analysis parametrization
  • P, PI, PID speed control
  • Control loop optimization

Weboffer

 0 Article
Equipment set / product

Supplementary set to EPE 30-1 line-commutated converters, consisting of:
1
DC multi-circuit, compound wound machine, 1 kW
DC multi-circuit, compound wound machine, 1 kW SE2682-5D
1
Regulating transformer, exciter 0-200 V
 Regulating transformer, exciter 0-200 V CO3212-5Q
1
Tachogenerator 1 V/1000 rpm, 1 kW
 Tachogenerator 1 V/1000 rpm, 1 kW SE2682-5U
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
Media:
1
Interactive Lab Assistant: Converter drives with DC motors 1 kW
 Interactive Lab Assistant: Converter drives with DC motors 1 kW SO2805-2K
Measuring instruments:
1
Power-Multimeter
 Power-Multimeter CO5127-2A
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
Accessories:
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Display for Power Electronics equipment
 Display for Power Electronics equipment ST8000-5B
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Protection cover for three-level experiment trolleys
 Protection cover for three-level experiment trolleys ST7200-5L
