EIT 8.1 Lighting and blind/shutter control using KNX

EIT 8.1 Lighting and blind/shutter control using KNX

Training contents:

  • Basics of the KNX installation bus

  • Sensors and actuators

  • Preparation and structure of a KNX project

  • Programming and parameterization of the participants

  • Creation and programming of group addresses

  • Inclusion of conventional switches in a KNX project

  • Programming of a central function

  • Switching and dimming of LEDs

  • Blind and curtain control

  • Time dependent controls

  • Logic functions

  • Scene control



Basic equipment set, consisting of:
1

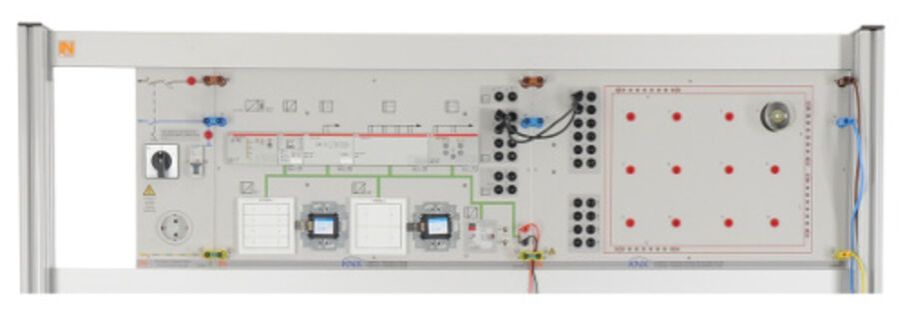

KNX compact board, colour display
KNX compact board, colour display CO3109-9W
1
KNX-Room Simulation with overlay masks, LED
KNX-Room Simulation with overlay masks, LED CO3109-9J
Media:
1
Interactive Lab Assistant: Basic course in building automation using KNX
Interactive Lab Assistant: Basic course in building automation using KNX SO2801-3Y
Power supply:
1
Power supply single phase with switch, circuit breaker and Schuko socket
Power supply single phase with switch, circuit breaker and Schuko socket CO3111-1A
Accessories:
13
Safety measurement cable (4mm), 25cm/10", black, 600 V, CAT III ' 1000 V, CAT II / 32A
Safety measurement cable (4mm), 25cm/10", black, 600 V, CAT III ' 1000 V, CAT II / 32A SO5126-8B
1
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
1
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
2
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
10
2mm safety measurement cable, 3cm, black  , 10A, stackable plugs
2mm safety measurement cable, 3cm, black , 10A, stackable plugs SO5126-7X
10
2mm safety measurement cable, 3cm, red
2mm safety measurement cable, 3cm, red SO5126-7V
1
2mm safety measurement cable, 30cm, black
2mm safety measurement cable, 30cm, black SO5126-7K
2
2mm safety measurement cable, 30cm, red
2mm safety measurement cable, 30cm, red SO5126-7H
2
2mm safety measurement cable, 30cm, blue
2mm safety measurement cable, 30cm, blue SO5126-7J
1
2mm safety measurement cable, 30cm, green, 10 A, stackable connector plug
2mm safety measurement cable, 30cm, green, 10 A, stackable connector plug SO5126-7C
1
Safety measurement lead 2mm, 30cm, white, 10A, stackable connector plug
Safety measurement lead 2mm, 30cm, white, 10A, stackable connector plug SO5126-7D
1
USB cable A-B
USB cable A-B LM9060
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49"x28"x79" WxDxH (1250x700x1995mm)
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets, 49"x28"x79" WxDxH (1250x700x1995mm) ST7200-4C
1
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs ST8010-4T
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
Software:
1
ETS 5 Lite software for KNX /  EIB (single licence) + dongle (D,GB,F,E)
ETS 5 Lite software for KNX / EIB (single licence) + dongle (D,GB,F,E) SO4001-4L
