ESM 3 Mains systems TN/TT/IT and protective measures

ESM 3 Mains systems TN/TT/IT and protective measures

Training contents:

  • Designing various mains systems used in customer installations (TT, TN, TN-C, TN-S or TN-C-S systems)

  • Implementation of a self-contained IT system fed by an isolating transformer (with additional board)

  • Choice of various protective components and how they work in different mains systems

  • Familiarity with various protective systems and how to test them with appropriate measuring equipment

  • Carrying out initial and subsequent tests in accordance with DIN VDE 0100-600

  • Dangers of electric current

  • Advice to and instruction of people regarding hazards of electrical systems

  • Evaluation of measurements and targeted fault finding

  • Preparing documentation and test reports

  • Continuity of equipotential bonding conductors

  • Measurement of insulation resistance

  • Testing RCD circuit breakers

  • Measurement of loop impedance,

  • Measurement of local insulation impedance

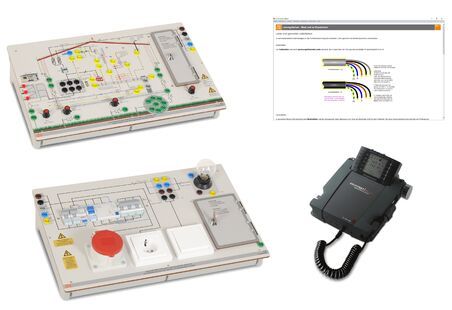

Equipment set comprising the following:
1
Wiring installation board: Building service entry with earthing, external lightning protection, TN/TT earthing systems
Wiring installation board: Building service entry with earthing, external lightning protection, TN/TT earthing systems CO3109-8H
1
Wiring installation board: Distribution box (consumer unit) with protective circuits, earth leakage circuit breakers, type B RCDs
Wiring installation board: Distribution box (consumer unit) with protective circuits, earth leakage circuit breakers, type B RCDs CO3109-8J
Additionally recommended
1
Protective measures for IT systems as per VDE 0100 installation board
Protective measures for IT systems as per VDE 0100 installation board CO3209-8K
1
Installation board for machine and system testing, VDE0113
Installation board for machine and system testing, VDE0113 CO3109-8M
Media:
1
Interactive Lab Assistant: Testing of protective systems in compliance with DIN VDE 0100measures
Interactive Lab Assistant: Testing of protective systems in compliance with DIN VDE 0100measures SO2801-3S
Measuring instruments:
1
Multi13S digital multimeter
Multi13S digital multimeter LM2330
1
Installation tester for protective circuitry according to DIN VDE0100, RCD typeB
Installation tester for protective circuitry according to DIN VDE0100, RCD typeB LM8556
1
Voltage, phase + continuity tester with field direction indicator, max. 400V
Voltage, phase + continuity tester with field direction indicator, max. 400V LM8554
Accessories:
1
Safety measurement cable (4mm), 50cm/20", blue
Safety measurement cable (4mm), 50cm/20", blue SO5126-8P
3
Safety measurement cable (4mm), 50cm, black
Safety measurement cable (4mm), 50cm, black SO5126-8L
3
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II SO5126-3W
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), brown, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), brown, 1000V/32A CAT II SO5126-3S
2
Safety connecting plug 4mm with tap (2x), grey, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), grey, 1000V/32A CAT II SO5126-3T
Accessories:
1
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm ST7200-3A
1
PC holder for SybaPro experiment trolleys, height/width adjustable
PC holder for SybaPro experiment trolleys, height/width adjustable ST7200-5F
1
Monitor holder for flat screen monitor of weight up to 10kg/22lb, VESA 75/100
Monitor holder for flat screen monitor of weight up to 10kg/22lb, VESA 75/100 ST8010-4L
1
Wall or aluminium-profile mounting cable storage for 48 cables
Wall or aluminium-profile mounting cable storage for 48 cables ST8003-8E
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
