Lucas Nülle - PEC 12 Training set for fundamentals of electro-pneumatics

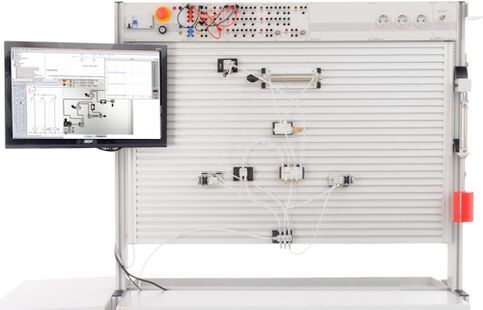

PEC 12 Training set for fundamentals of electro-pneumatics

Electrical and electropneumatic basics

Training content:

Master control of single-acting cylinders, valve with spring return
Master control of double-acting cylinders, valve with spring return
Hold element control, double-acting cylinder, pulse valve, direct Operated
Basic circuit with AND links
Basic circuit with OR links
Basic circuits with electric self-holding circuits
Distance dependent control, double-acting cylinder, 1 elect. position switch
Distance dependent control of double-acting cylinders, valve with spring return, cylinder switch
Time-dependent control, double-acting cylinder, pick-up delay
Time-dependent control, double-acting cylinder, release time delay
Sequence control, 2 double-acting cylinders, pulse valves, signal Overlapping
Grafcet

Equipment set comprising the following:
1	Basic Level Pneumatics - PAL	SE2905-1H
1	Basic Level Electropneumatics - PAL	SE2905-1J
1	Grooved plate 1130 x 700 x 30 mm	SE2905-8A
1	Compressor, low-noise	SE2902-9L
1	Pneumatic accessories	SE2905-1K
1	Mobile experiment stand for hydraulics and pneumatics, without drawers	ST7200-3V
1	Power channel, experiment stand for pneumatics and hydraulics, 1250mm, 3HU/222PU	ST8033-2F
1	Electrical Operating Module 84PU	ST8008-9K
1	Electrical system Operating module Interface 84TE	ST8008-9N
1	AC power panel, 230V/16A, RCD, shut-off, key switch, (42PU)	ST8008-3A
1	Socket panel unit, 2 earth pin sockets, (12PU)	ST8008-3X

Accessories:
15	Safety measurement cable 4mm, 25cm/10", red, 600V CAT III ~1000V CAT II / 32A	SO5126-8A
15	Safety measurement cable 4mm, 25cm/10", black, 600V CAT III ~1000V CAT II / 32A	SO5126-8B
5	Safety measurement cable 4mm, 25cm/10", blue, 600V CAT III ~1000V CAT II / 32A	SO5126-8E
5	Safety measurement cable 4mm, 50cm/20", red, 600 V CAT III ~1000V, CAT II / 32 A	SO5126-8K
5	Safety measurement cable 4mm, 50cm/20", blue, 600 V CAT III ' 1000 V, CAT II / 32A	SO5126-8P
5	Safety measurement cable 4mm, 100cm/40", red, 600 V CAT III ~1000 V, CAT II / 32A	SO5126-8U
5	Safety measurement cable 4mm, 100cm/40", blue, 600V CAT III ~1000V CAT II / 32A	SO5126-9A

Media:
1		Interactive Lab Assistant: PAL pneumatics set		SO2801-6C
1		Interactive Lab Assistant: Electro Pneumatics according to PAL		SO2801-6F

Additionally recommended:
1		IDG3 membrane dryer with rapid coupling and filter AF20 with water trap		LM9671

Optional Accessories:
1	Wall or aluminium profile mounting storage (grey) for 48 x 4mm cables	ST8003-8E
1	Monitor holder for flat screen monitor of weight up to 10 kg/22 lbs, VESA 75/100	ST8010-4L
1	PC holder for SybaPro experiment trolleys, height/width adjustable	ST7200-5F
1	Protection cover for three-level experiment trolleys	ST8010-9Y
