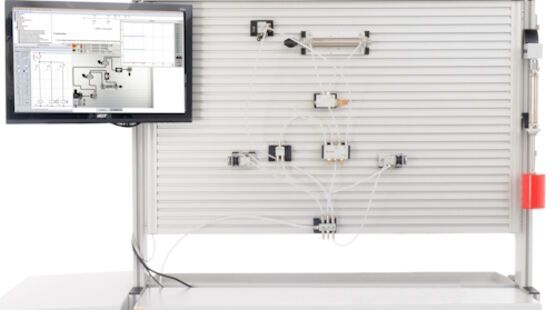

The pneumatics training set schemes is suitable for training objectives and contents for vocational and advanced professional training of technicians . It covers the fundamentals of pneumatics based on authentic industrial products.

Training content:

• Direct control, single-acting cylinder, extending
• Direct control, single-acting cylinder, retracting
• Direct control, double-acting cylinder with button
• Indirect control, double-acting cylinder
• Velocity control, double-acting cylinder
• Control of double-acting cylinders, pulse valve, 2 manual buttons
• Distance dependent control of double-acting cylinders, pulse valve
• Time-dependent control, 1 double-acting cylinder
• Connection control with shuttle and two-pressure valves
• Signal control, 2 double-acting cylinders, without signal overlapping
• Grafcet
