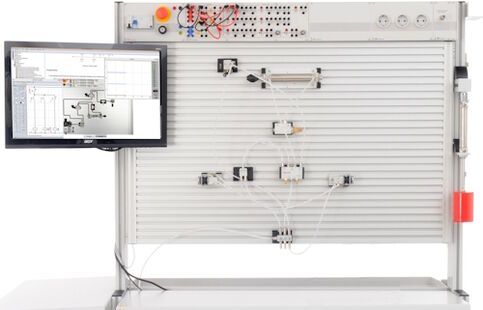

Electrical and electropneumatic fundamentals.

Training content:

• Master control of single-acting cylinders, valve with spring return
• Master control of double-acting cylinders, valve with spring return
• Hold element control, double-acting cylinder, pulse valve, direct Operated
• Hold element control, double-acting cylinder, pulse valve, relay
• Basic circuit with AND links
• Basic circuit with OR links
• Basic circuits with electric self-holding circuits
• Distance dependent control, double-acting cylinder, 1 elect. position switch
• Distance dependent control of double-acting cylinders, pulse valve, cylinder switch
• Distance dependent control of double-acting cylinders, valve with spring return, cylinder switch
• Stop controls, double-acting cylinder, 5/3 directional valve in locked central position
• Time-dependent control, double-acting cylinder, pick-up delay
• Time-dependent control, double-acting cylinder, release time delay
• Pressure-dependent control, double-acting cylinder
• Two-hand safety control, electric
• Sequence control, 2 double-acting cylinders, pulse valves
• Sequence control, 2 double-acting cylinders, pulse valves, signal Overlapping
• Sequence control, 2 double-acting cylinders, spring-returned valves, step chain
• Sequence control, 3 double-acting cylinders, pulse valves, step chain
• Sequence control, 3 double-acting cylinders, spring-returned valves, step chain
• Grafcet
