TTK 1 VoIP-ISDN-POTS trainer SOHO

TTK 1 VoIP-ISDN-POTS trainer SOHO

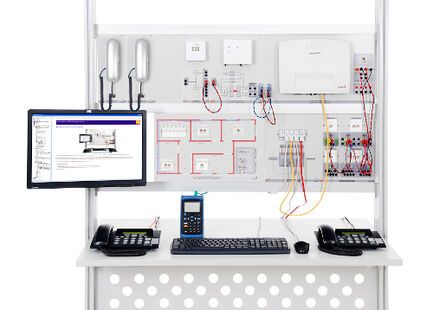

The SOHO VoIP-ISDN-POTS training system makes it possible to set up, operate, configure and look for problems on a small-office or home-office (SOHO) telephone system. The training equipment can either be used on its own or integrated as part of an existing telephone system.

Customer order: planning and set-up of a SOHO telephone system

  • Installation and configuration
  • Putting the system into operation
  • Installation and configuration of analog devices
  • Installation and configuration of ISDN devices
  • Installation and configuration of VoIP devices
  • Troubleshooting
  • Handover and instruction of customers

Weboffer

 0 Article
Equipment set / product

Basic equipment set, consisting of:
1
PABX System
 PABX System CO3538-1B
1
Universal connecting unit
Universal connecting unit CO3538-1Q
2
Analog telephone
Analog telephone CO3538-1Y
2
VoIP telephone with graphic display
VoIP telephone with graphic display LM9940
1
Gigabit Ethernet switch
Gigabit Ethernet switch CO3538-1V
1
SOHO network with fault simulator
SOHO network with fault simulator CO3538-1X
Supplement to basic set, consisting of:
1
ISDN telephone
 ISDN telephone LM9923
1
DECT telephone (analog)
DECT telephone (analog) SO3538-3L
Measuring instruments:
1
SignalTEK II data cable and signal tester
 SignalTEK II data cable and signal tester LM9890
Media:
1
Interactive Lab Assistant: Office Telecommunications Network Installation
 Interactive Lab Assistant: Office Telecommunications Network Installation SO2802-1N
Accessories:
1
Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm)
 Mobile aluminum experiment stand, 3 levels, power strip with 6 sockets,(1250 x 1970 x 700 mm) ST7200-4C
1
Set of safety measurement cables, 2mm (30 leads), for video intercom
Set of safety measurement cables, 2mm (30 leads), for video intercom SO5148-1R
4
Patch cable Cat5E 1x0.5 m red, 1x0.5 m blue, 1x2.0 m yellow
Patch cable Cat5E 1x0.5 m red, 1x0.5 m blue, 1x2.0 m yellow LM9055
2
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow LM9057
1
USB cable A-B
USB cable A-B LM9060
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
 Keyboard adapter for flat screen monitor holders ST8010-4G
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
