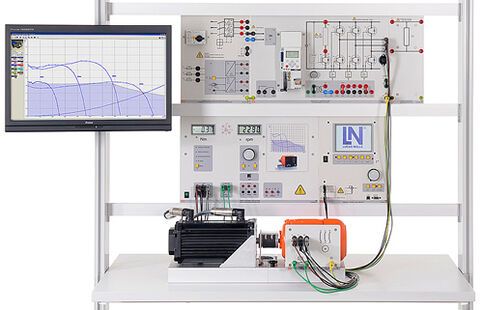

EDT 25-1 Drives with frequency converter drives 1kW

EDT 25-1 Drives with frequency converter drives 1kW
Experiment topics:
- Putting the system into operation (computer-aided)
- Programming basic functions:
- Setting the setpoint, rotation direction, starting function, operating frequency, limiting values, nominal voltage, nominal current, nominal frequency, power factor etc.
- Investigating the operating response
- Measuring the power and rms values
- Load experiments Recording the speed/torque characteristic in motor operation (1/3 quadrants)
- Optimization of the U/f characteristic
- Compensation of the stator resistance
- Field weakening control
- Brake chopper operation
