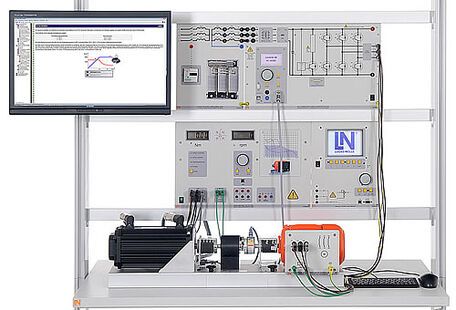

EPE 51-3 Field-oriented control of asynchronous machine with MATLAB - Simulink 300W

EPE 51-3 Field-oriented control of asynchronous machine with MATLAB - Simulink 300W

Training objectives:

  • Setting up a hardware-in-the-loop system under real-time conditions
  • Modelling and designing cascade closed-loop control for a DC motor on an ongoing design level
  • Reducing the control system to discrete components to run on a digital signal processor
  • Creation and optimization of automatic flow-rate and speed controllers
  • Park- und Clarke transformation
  • Integration of the space phasor modulation to optimize the control of the IGBT
  • Speed detection using incremental sensors
  • Comparison of simulation results with actual measurements
Basic equipment set, consisting of:
1
Self-commutated converter circuits
Self-commutated converter circuits CO3636-3B
1
USB adapter with MATLAB toolbox for power electronics and process control
USB adapter with MATLAB toolbox for power electronics and process control CO3636-3D
1
Three-phase isolating transformer 300VA
Three-phase isolating transformer 300VA CO3636-3E
1
Three-phase asynchronous motor, 0.3kW n=1400 (230V/400V)
Three-phase asynchronous motor, 0.3kW n=1400 (230V/400V) SE2673-1K
1
Incremental position encoder 1024 pulses
Incremental position encoder 1024 pulses SE2663-3T
1
Coupling guard, 0.1/0.3kW, transparent
Coupling guard, 0.1/0.3kW, transparent SE2662-7B
1
Rubber coupling sleeve, 0.3kW
Rubber coupling sleeve, 0.3kW SE2662-2A
Media:
1
Interactive Lab Assistant: Frequency converter drives
Interactive Lab Assistant: Frequency converter drives SO2800-2L
1
Interactive Lab Assistant: Field-oriented control using MATLAB-Simulink
Interactive Lab Assistant: Field-oriented control using MATLAB-Simulink SO2800-2V
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E)
Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6V
1
Rubber coupling sleeve, 0.3kW
Rubber coupling sleeve, 0.3kW SE2662-2A
1
Coupling guard, 0.1/0.3kW, transparent
Coupling guard, 0.1/0.3kW, transparent SE2662-7B
1
QuickChart, Servo-machine test stand safety and operating instructions (GB)
QuickChart, Servo-machine test stand safety and operating instructions (GB) SO6200-7D
Measuring instruments:
1
Digital/analog multimeter, wattmeter, power-factor incl. software
Digital/analog multimeter, wattmeter, power-factor incl. software CO5127-1Z
Accessories:
1
Set of safety measurement cables, 4mm (31 leads)
Set of safety measurement cables, 4mm (31 leads) SO5148-1L
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II SO5126-3W
1
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm ST7200-3A
1
Protected power distribution for working stations
Protected power distribution for working stations ST8008-8N
1
Wall or aluminium-profile mounting cable storage for 48 cables
Wall or aluminium-profile mounting cable storage for 48 cables ST8003-8E
1
PC holder for SybaPro experiment trolleys, height/width adjustable
PC holder for SybaPro experiment trolleys, height/width adjustable ST7200-5F
1
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
Keyboard adapter for flat screen monitor holders ST8010-4G
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
