IMS 7 Handling

IMS 7 Handling

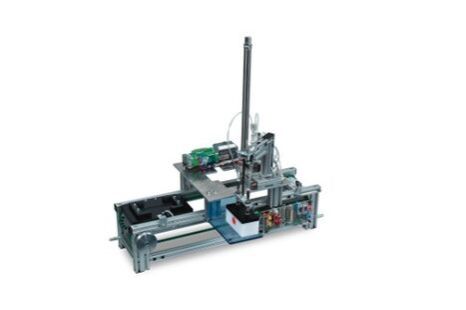

A carrier with a fully assembled and tested workpiece is located on the conveyor belt. A handling station is located above the middle of the conveyor belt. The carrier is stopped at the removal position. The handling module lifts up the workpiece and transfers it to one of two possible positions. The empty carrier is conveyed to the end of the belt to be passed on to the next sub-system.

Weboffer

 0 Article
Equipment set / product

List of articles:
1
Course Mechatronic Stations
 Course Mechatronic Stations CO4204-3K
1
Handling station
 Handling station LM9683
1
Double conveyor belt segment, 24 V motor
 Double conveyor belt segment, 24 V motor LM9606
1
Workpiece transport pallet
 Workpiece transport pallet LM9520
1
Workpiece, bottom section, white
 Workpiece, bottom section, white LM9524
Accessories:
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
Serial interface cable 9/9 pole
Serial interface cable 9/9 pole LM9040
