IMS 5 Processing

IMS 5 Processing

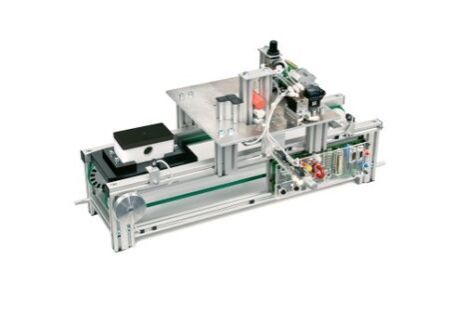

A workpiece carrier is located on the conveyor belt. It is loaded with a fully assembled two-component workpiece (top and bottom pieces). The carrier and its load are positioned beneath the process module. The workpiece is clamped for processing. A bolt from the gravity-feed magazine is pressed into the hole in the workpiece. The clamp opens and the carrier and load are conveyed to the end of the belt to be passed on to the next sub-system.

Weboffer

 0 Article
Equipment set / product

List of articles:
1
Course Mechatronic Stations
 Course Mechatronic Stations CO4204-3K
1
Processing station
 Processing station LM9682
1
Double conveyor belt segment, 24 V motor
 Double conveyor belt segment, 24 V motor LM9606
1
Workpiece transport pallet
 Workpiece transport pallet LM9520
1
Workpiece, top section, white
 Workpiece, top section, white LM9521
1
Workpiece, bottom section, black
 Workpiece, bottom section, black LM9525
3
Bolt workpiece, metal
 Bolt workpiece, metal LM9527
3
Bolt workpiece, plastic red
 Bolt workpiece, plastic red LM9528
Accessories:
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
Serial interface cable 9/9 pole
Serial interface cable 9/9 pole LM9040
