IMS 3 Sorting

IMS 3 Sorting

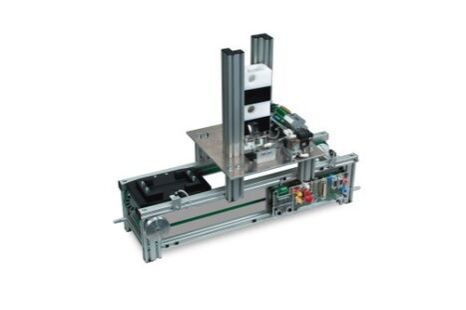

A workpiece carrier is located on the conveyor belt. The carrier is positioned under the shaft for the gravity-feed magazine. The sorting station has a magazine that accommodates six bottom pieces. One piece is selected and placed in the carrier. The carrier and its load are then conveyed to the end of the belt to be passed on to the next sub-system.

Weboffer

 0 Article
Equipment set / product

List of articles:
1
Course Mechatronic Stations
 Course Mechatronic Stations CO4204-3K
1
Sorting station
 Sorting station LM9627
1
Double conveyor belt segment, 24 V motor
 Double conveyor belt segment, 24 V motor LM9606
1
Workpiece transport pallet
 Workpiece transport pallet LM9520
2
Workpiece, bottom section, white
 Workpiece, bottom section, white LM9524
2
Workpiece, bottom section, black
 Workpiece, bottom section, black LM9525
Accessories:
1
Serial interface cable 9/9 pole
Serial interface cable 9/9 pole LM9040
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
