CSF 4 ERP Lab

CSF 4 ERP Lab

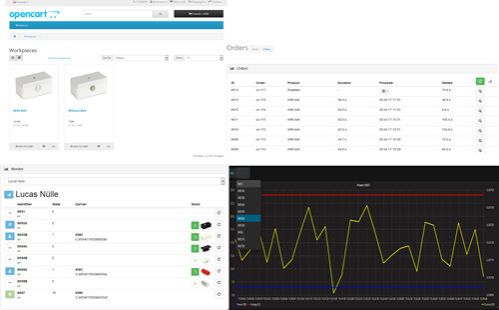

The ERP lab is an ERP system (ERP - Enterprise Resource Planning) designed especially for educational purposes. The software carries out such management tasks as planning and control of resources, operating equipment, material and also the IT and communications functions.

A core function of the ERP lab is the planning of material resource needs. It is used to ensure that all of the materials required for the production of assets and components are available in the right amounts and on schedule. Nowadays this task can only be accomplished with the aid of IT systems and based on modern IT and communications technology.

Equipment set comprising the following:
8
Cyber physical conveyor system with PLC and IO-link master
Cyber physical conveyor system with PLC and IO-link master LM9516
2
180° conveyor belt segment
180° conveyor belt segment LM9611
2
Sorting station
Sorting station LM9627
2
Assembly station
Assembly station LM9628
2
Processing station
Processing station LM9682
1
Handling station
Handling station LM9683
1
Router with DSL modem and WLAN access point
Router with DSL modem and WLAN access point CO3538-1R
Programmable logic control (PLC) for IMS Production Lines
1
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply CO3713-8R
1
Touch panel TP700 Comfort Trainer Package
Touch panel TP700 Comfort Trainer Package CO3713-4P
Media:
1
Interactive Lab Assistant: CSF 1 Industry 4.0
Interactive Lab Assistant: CSF 1 Industry 4.0 SO2805-5P
1
Interactive Lab Assistant: CSF 2 WiFi control for IMS
Interactive Lab Assistant: CSF 2 WiFi control for IMS SO2800-5U
1
Interactive Lab Assistant: CSF 4 ERP Lab for Industry 4.0 / Smart Factory
Interactive Lab Assistant: CSF 4 ERP Lab for Industry 4.0 / Smart Factory SO2800-5Z
1
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations SO2805-5N
1
Interactive Lab Assistant: CFA 1 IMS Factory App (Augmented Reality)
Interactive Lab Assistant: CFA 1 IMS Factory App (Augmented Reality) SO2805-4F
1
QuickChart Siemens PLC S7-1500 Board
QuickChart Siemens PLC S7-1500 Board SO6200-5K
1
QuickChart Touch Panel TP700
QuickChart Touch Panel TP700 SO6200-5H
1
QuickChart IMS 1.5 Cyber-physical conveyor belt system
QuickChart IMS 1.5 Cyber-physical conveyor belt system SO6200-2P
1
QuickChart, IMS 3 Mechatronics Sorting   sub-system
QuickChart, IMS 3 Mechatronics Sorting sub-system SO6200-1C
1
QuickChart, IMS 4 Mechatronics Assembly sub-system
QuickChart, IMS 4 Mechatronics Assembly sub-system SO6200-1D
1
QuickChart, IMS 5 Mechatronics Process sub-system
QuickChart, IMS 5 Mechatronics Process sub-system SO6200-1E
1
QuickChart, IMS 7 Mechatronics Handling sub-system
QuickChart, IMS 7 Mechatronics Handling sub-system SO6200-1G
Accessories:
6
IO-link ultrasonic sensor
IO-link ultrasonic sensor LM9657
8
Workpiece transport pallet
Workpiece transport pallet LM9520
5
Workpiece, top section, white
Workpiece, top section, white LM9521
5
Workpiece, top section, black
Workpiece, top section, black LM9522
6
Workpiece, bottom section, white
Workpiece, bottom section, white LM9524
6
Workpiece, bottom section, black
Workpiece, bottom section, black LM9525
5
Bolt workpiece, metal
Bolt workpiece, metal LM9527
5
Bolt workpiece, plastic red
Bolt workpiece, plastic red LM9528
1
IMS Material chute for Handling Station
IMS Material chute for Handling Station LM9694
7
Interface cable 25-pin, Sub-D socket / plug 1m
Interface cable 25-pin, Sub-D socket / plug 1m LM9066
8
DC power supply 24 V/5 A for IMS conveyor belts
DC power supply 24 V/5 A for IMS conveyor belts LM9672
1
Compressor, low-noise
Compressor, low-noise SE2902-9L
1
Tubing and accessory set for mechatronics systems
Tubing and accessory set for mechatronics systems LM9571
1
USB 2.0 Ethernet adapter, 10/100
USB 2.0 Ethernet adapter, 10/100 LM8257
2
Patch cable Cat6 1m, grey
Patch cable Cat6 1m, grey LM9070
3
Safety measurement cable 4mm, 100cm/40", blue, 600V CAT III ~1000V CAT II / 32A
Safety measurement cable 4mm, 100cm/40", blue, 600V CAT III ~1000V CAT II / 32A SO5126-9A
3
Safety measurement cable 4mm, 100cm/40", red,  600 V CAT III ~ 1000 V, CAT II / 32A
Safety measurement cable 4mm, 100cm/40", red, 600 V CAT III ~ 1000 V, CAT II / 32A SO5126-8U
2
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II SO5126-3U
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
IMS Virtual
1
IMS Virtual Trainer package
IMS Virtual Trainer package SO6001-7A
1
Interactive Lab Assistant: IMS Virtual
Interactive Lab Assistant: IMS Virtual SO2805-5V
IMS furniture
1
SybaPro mobile IMS experiment trolley with experiment frame, 1200 mm, 2 levels
SybaPro mobile IMS experiment trolley with experiment frame, 1200 mm, 2 levels ST7200-3T
2
SybaPro mobile IMS experiment trolley, 1200mm
SybaPro mobile IMS experiment trolley, 1200mm ST7200-3U
1
Monitor holder for flat screen monitor of weight up to 10kg, DIN A4, VESA 75/100
Monitor holder for flat screen monitor of weight up to 10kg, DIN A4, VESA 75/100 ST8010-4K
Software:
1
Software, STEP 7 Trainer package 6xSTEP 7, S7-Graph, S7-SCL, PLC-Sim (D,GB,F,E,I)
Software, STEP 7 Trainer package 6xSTEP 7, S7-Graph, S7-SCL, PLC-Sim (D,GB,F,E,I) SO6002-1X
