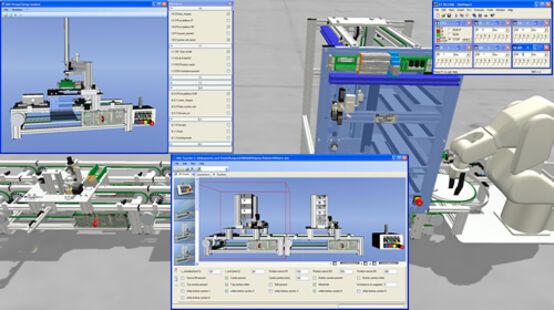

IMS virtual is a PC-based, graphic 3D simulation system, which provides the virtual learning platform for the IMS mechatronic training system. The virtual sub-systems and production plants are depicted with all of their components animated in dynamic scenes of virtual 3D simulation operating in real time. This 3D simulation is programmed like the real models using STEP 7 and controlled via "S7 PLCSIM" software.

  • Simulation and visualisation of technical processes

  • PLC programming according to IEC 1131-1 (STL, LD, FUP)

  • Control and testing of technical processes

  • Parameterisation, programming and commissioning of technically different systems

  • Perform systematic trouble-shooting on production facility

  • Centralised operation and monitoring of systems and processes

  • Become familiar with operation and system structure of a production facility

  • Explore how an industrial robot works within a production facility
