Course - Electronics 9: Circuit design using NI Multisim

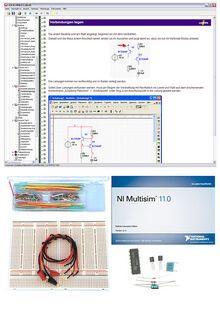

Includes:

• Software NI Multisim Education Edition, single user license

• UniTrain breadboard with set of cables

• 2 sets of wired components

• Storage case

• Labsoft browser and course software

Course contents:

• Design a PWM-controlled light mixer

• Consider alternative solution strategies

• Assess the cost-benefit ratio

• Select components

• Sketch a circuit

• Compute the component values

• Learn about a circuit simulation program based on NI Multisim

• Design a circuit diagram in NI Multisim

• Simulate the circuit's operation in NI Multisim

• Assemble the simulated circuit on the breadboard

• Perform measurements and tests on the breadboard circuit

• Compare the simulation with measured results of real circuit

• Evaluation and optimisation of the circuit

• Course duration: approx. 8 h
