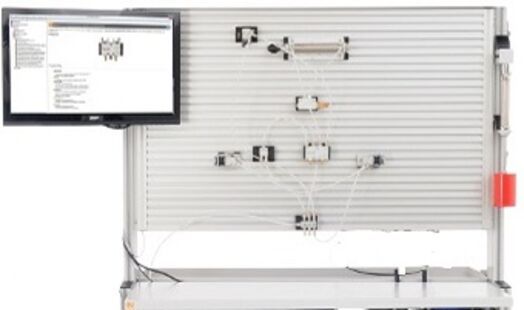

PBC 11 Fluid power trainer pneumatics set

PBC 11 Fluid power trainer pneumatics set

The pneumatics training set schemes is suitable for training objectives and contents for vocational and advanced professional training of technicians . It covers the fundamentals of pneumatics based on authentic industrial products.

Project exercises:

  • Direct control, single-acting cylinder, extending
  • Direct control, single-acting cylinder, retracting
  • Indirect control, single-acting cylinder
  • Velocity control, single-acting cylinder
  • Quick moving back, single-acting cylinder
  • Direct control, double-acting cylinder with button
  • Indirect control, double-acting cylinder
  • Velocity control, double-acting cylinder
  • Control of double-acting cylinders, pulse valve, 2 manual buttons
  • Distance dependent control of double-acting cylinders, pulse valve
  • Control of double-acting cylinders, pulse valve, 2 reflex  nozzles
  • Stop control, double-acting cylinder, 5/3 directional valve, pulling load
  • Pressure-dependent control, 1 double-acting cylinder
  • Time-dependent control, 1 double-acting cylinder
  • Connection control with shuttle and two-pressure valves
  • Signal control, 2 double-acting cylinders, without signal overlapping
  • Sequence control, 2 double-acting cylinders, signal  overlapping, roller levers with idle return
  • Sequence control, 2 double-acting cylinders, signal overlapping, switchover valve
  • Grafcet
