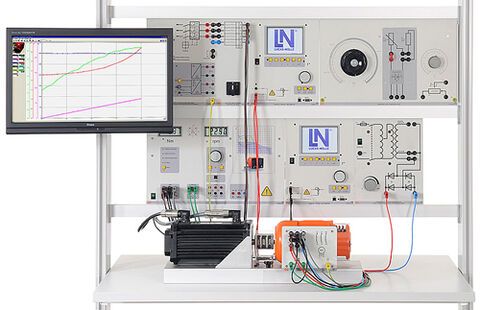

EEM 5.1-3 Synchronous machines 300W

EEM 5.1-3 Synchronous machines 300W

Training objectives:
Motor operation:

  • Motor connection
  • Starting
  • Reversing rotation direction
  • Excitation and load angle
  • Synchronous compensator operation
  • Power factor and exciter current
  • Load characteristics in motor operation
  • V characteristics
  • Stability limits
  • Under- and over excitation
  • Measurement evaluation

Generator operation:

  • Generator connection
  • Voltage setting via the exciter current
  • Load characteristics in generator operation
  • Measurement evaluation


Weboffer

 0 Article
Equipment set / product

Basic equipment set, consisting of:
1
Three-phase multi-function machine, 0.3kW
Three-phase multi-function machine, 0.3kW SE2672-3W
1
Universal rheostat for 300W machines
 Universal rheostat for 300W machines CO3212-6W
1
Regulating transformer, exciter 0-200V
 Regulating transformer, exciter 0-200V CO3212-5Q
1
Cut-out switch, 4 poles
Cut-out switch, 4 poles CO3212-1W
1
Digital/analog multimeter, wattmeter, power-factor incl. software
 Digital/analog multimeter, wattmeter, power-factor incl. software CO5127-1Z
Media:
1
Interactive Lab Ass.: Slip-ring rotors,sync. machines, synchronisation 0.3/1 kW
 Interactive Lab Ass.: Slip-ring rotors,sync. machines, synchronisation 0.3/1 kW SO2800-1D
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6V
1
Rubber coupling sleeve, 0.3kW
Rubber coupling sleeve, 0.3kW SE2662-2A
1
Coupling guard, 0.1/0.3kW, transparent
 Coupling guard, 0.1/0.3kW, transparent SE2662-7B
1
QuickChart, Servo-machine test stand safety and operating instructions (GB)
QuickChart, Servo-machine test stand safety and operating instructions (GB) SO6200-7D
Power supply:
1
Universal power supply for electrical machines
Universal power supply for electrical machines CO3212-5U
Measuring instruments:
1
Digital/analog multimeter, wattmeter, power-factor incl. software
 Digital/analog multimeter, wattmeter, power-factor incl. software CO5127-1Z
Accessories:
1
Set of safety measurement cables, 4mm (31 leads)
Set of safety measurement cables, 4mm (31 leads) SO5148-1L
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II SO5126-3W
1
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm
 Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm ST7200-3A
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
1
Wall or aluminium-profile mounting cable storage for 48 cables
 Wall or aluminium-profile mounting cable storage for 48 cables ST8003-8E
1
PC holder for SybaPro experiment trolleys, height/width adjustable
 PC holder for SybaPro experiment trolleys, height/width adjustable ST7200-5F
1
Monitor holder for flat screen monitor of weight up to 15kg / 33lbs
 Monitor holder for flat screen monitor of weight up to 15kg / 33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
 Keyboard adapter for flat screen monitor holders ST8010-4G
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
