IPA 3 filling station

IPA 3 filling station

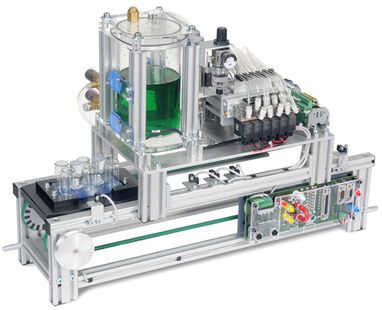

Enabling a filling of bottle groups in defined doses, this station is the optimum solution for typical production processes in the most varied of industries. The system's modularity permits various configurations to be implemented in a safe laboratory environment.

Training content:

  • Setup, wiring and start-up of a process plant

  • Selection, application and connection of various sensors

  • Measurement of electrical and process variables such as filling level

  • Use and connection of measurement transducers

  • Design of open-loop and closed-loop control programs

  • Process handling and monitoring

  • Inspection, maintenance and repair

  • Networking of process plants

Basic equipment set, consisting of:
1
IPA filling station
IPA filling station LM9552
1
Double conveyor belt segment, 24V motor
Double conveyor belt segment, 24V motor LM9606
2
IMS capacitive sensor for conveyor belt, incl. mounting
IMS capacitive sensor for conveyor belt, incl. mounting LM9678
1
Workpiece transport pallet
Workpiece transport pallet LM9620
2
Sixpack for IPA
Sixpack for IPA LM9560
1
IPA container for transport pallet
IPA container for transport pallet LM9561
Accessories:
1
Connection cable for PROFIBUS, 1.5m; 2xConnection plug
Connection cable for PROFIBUS, 1.5m; 2xConnection plug LM9180
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
2
Safety measurement cable (4mm), 100cm/40", blue
Safety measurement cable (4mm), 100cm/40", blue SO5126-9A
2
Safety measurement cable (4mm), 100cm/40", red
Safety measurement cable (4mm), 100cm/40", red SO5126-8U
Media:
1
Interactive Lab Assistant: IPA 3 Filling/bottling station
Interactive Lab Assistant: IPA 3 Filling/bottling station SO2805-4L
1
QuickChart, IMS 1.2 Conveyor belt with DC drive
QuickChart, IMS 1.2 Conveyor belt with DC drive SO6200-1A
1
QuickChart, IPA 3 Filling
QuickChart, IPA 3 Filling SO6200-2G
S7-1500 PLC control system with accessories:
1
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply CO3713-8R
1
Touch panel TP700 Comfort Trainer Package
Touch panel TP700 Comfort Trainer Package CO3713-4P
1
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II SO5126-3U
1
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
1
QuickChart Siemens SPS S7-1500 Board
QuickChart Siemens SPS S7-1500 Board SO6200-5K
1
QuickChart Touch Panel TP700
QuickChart Touch Panel TP700 SO6200-5H
IMS furniture
1
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels ST7200-3T
1
Protective cover for 1200mm wide IMS experiment trolleys with training panel
Protective cover for 1200mm wide IMS experiment trolleys with training panel ST8010-8L
Additionally required:
1
Compressor, low-noise
Compressor, low-noise SE2902-9L
1
Tubing and accessory set for mechatronics systems
Tubing and accessory set for mechatronics systems LM9670

In order to avoid condensation in areas of high humidity, the membrane dryer with water trap should be...   more

1
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap LM9671
IMS/IPA Tester and Fault Simulator
1
IMS/IPA test and fault simulator
IMS/IPA test and fault simulator CO3713-7V
2
Serial interface cable 9/9 pole
Serial interface cable 9/9 pole LM9040
2
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
QuickChart IMS test and fault simulator
QuickChart IMS test and fault simulator SO6200-1Z
