IMS 10 Buffering

IMS 10 Buffering

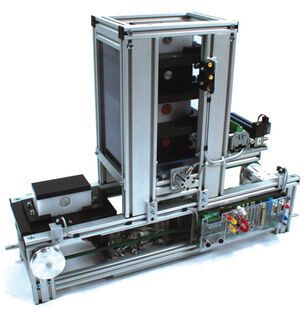

The conveyor belt is equipped with two lifting units for buffering or queuing workpieces in complex mechatronics systems. The buffer controls the flow of materials. The carrier is lifted from the conveyor belt by a lifting unit and deposited in a magazine, while the belt continues moving with other pieces. Up to four laden or 10 unladen workpiece carriers can be held in store. The lifting unit can set the workpiece back onto the conveyor when necessary.

Equipment set comprising the following:
1
Material buffering station
Material buffering station LM9687
1
Cyber-physical Conveyor System
Cyber-physical Conveyor System LM9515
1
IMS displacement measurement module
IMS displacement measurement module LM9677
3
Workpiece transport pallet
Workpiece transport pallet LM9520
1
Workpiece, top section, white
Workpiece, top section, white LM9521
1
Workpiece, top section, black
Workpiece, top section, black LM9522
1
Workpiece, bottom section, white
Workpiece, bottom section, white LM9524
1
Workpiece, bottom section, black
Workpiece, bottom section, black LM9525
Accessories:
1
DC power supply 24V/5A for IMS conveyor belts
DC power supply 24V/5A for IMS conveyor belts LM9672
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
Media:
1
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations SO2805-5N
1
Interactive Lab Assistant: IMS 10 Buffering station
Interactive Lab Assistant: IMS 10 Buffering station SO2800-5K
1
QuickChart IMS 1.5 Cyber-physical conveyor belt system
QuickChart IMS 1.5 Cyber-physical conveyor belt system SO6200-2P
1
QuickChart, IMS 10 Mechatronics Buffering sub-system
QuickChart, IMS 10 Mechatronics Buffering sub-system SO6200-1K
Additionally recommended
1
Compressor, low-noise
Compressor, low-noise SE2902-9L
1
Tubing and accessory set for mechatronics systems
Tubing and accessory set for mechatronics systems LM9670
1
Set of Allen keys
Set of Allen keys LM9716
1
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels ST7200-3T
1
Protective cover for 1200mm wide IMS experiment trolleys with training panel
Protective cover for 1200mm wide IMS experiment trolleys with training panel ST8010-8L

In areas where there are high levels of humidity the membrane dryer

with water trap should be used to avoid...   more

1
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap LM9671
IMS/IPA Tester and Fault Simulator
1
IMS/IPA test and fault simulator
IMS/IPA test and fault simulator CO3713-7V
2
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
QuickChart IMS test and fault simulator
QuickChart IMS test and fault simulator SO6200-1Z
