IMS 5 Processing

IMS 5 Processing

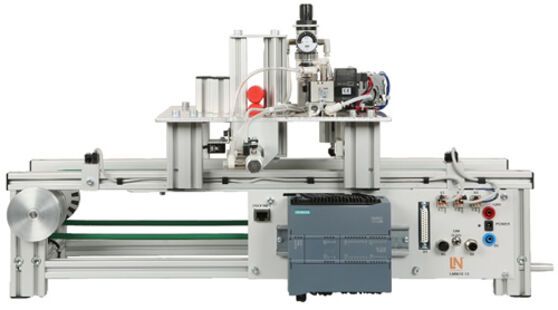

A workpiece carrier is located on the conveyor belt. It is loaded with a fully assembled two-component workpiece (top and bottom pieces). The carrier and its load are positioned beneath the process module. The workpiece is clamped for processing. A bolt from the gravity-feed magazine is pressed into the hole in the workpiece. The clamp opens and the carrier and load are conveyed to the end of the belt to be passed on to the next sub-system.

Equipment set comprising the following:
1
Processing station
Processing station LM9682
1
Cyber-physical Conveyor System
Cyber-physical Conveyor System LM9515
1
IMS displacement measurement module
IMS displacement measurement module LM9677
1
Workpiece transport pallet
Workpiece transport pallet LM9520
1
Workpiece, top section, white
Workpiece, top section, white LM9521
1
Workpiece, bottom section, black
Workpiece, bottom section, black LM9525
3
Bolt workpiece, metal
Bolt workpiece, metal LM9527
3
Bolt workpiece, plastic, red
Bolt workpiece, plastic, red LM9528
Accessories:
1
DC power supply 24V/5A for IMS conveyor belts
DC power supply 24V/5A for IMS conveyor belts LM9672
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
Media:
1
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations SO2805-5N
1
QuickChart IMS 1.5 Cyber-physical conveyor belt system
QuickChart IMS 1.5 Cyber-physical conveyor belt system SO6200-2P
1
QuickChart, IMS 5 Mechatronics Process sub-system
QuickChart, IMS 5 Mechatronics Process sub-system SO6200-1E
Additionally recommended
1
Compressor, low-noise
Compressor, low-noise SE2902-9L
1
Tubing and accessory set for mechatronics systems
Tubing and accessory set for mechatronics systems LM9670
1
Set of Allen keys
Set of Allen keys LM9716
1
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels
SybaPro mobile IMS experiment trolley with experiment frame, 1200mm, 2 levels ST7200-3T
1
Protective cover for 1200mm wide IMS experiment trolleys with training panel
Protective cover for 1200mm wide IMS experiment trolleys with training panel ST8010-8L

In areas where there are high levels of humidity the membrane dryer

with water trap should be used to avoid...   more

1
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap LM9671
IMS/IPA Tester and Fault Simulator
1
IMS/IPA test and fault simulator
IMS/IPA test and fault simulator CO3713-7V
2
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
QuickChart IMS test and fault simulator
QuickChart IMS test and fault simulator SO6200-1Z
