IMS 4 Assembly

IMS 4 Assembly

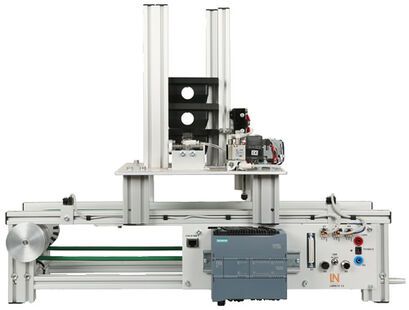

A workpiece carrier is located on the conveyor belt. The carrier is positioned under the shaft for the gravity-feed magazine. The sorting station has a magazine that accommodates six top pieces. One piece is selected and placed in the carrier. The carrier and its load are then conveyed to the end of the belt to be passed on to the next sub-system.

Equipment set comprising the following:
1
Assembly station
Assembly station LM9628
1
Cyber physical conveyor system
Cyber physical conveyor system LM9515
1
IMS displacement measurement module
IMS displacement measurement module LM9677
1
Workpiece transport pallet
Workpiece transport pallet LM9520
2
Workpiece, top section, white
Workpiece, top section, white LM9521
2
Workpiece, top section, black
Workpiece, top section, black LM9522
1
Workpiece, bottom section, white
Workpiece, bottom section, white LM9524
Accessories:
1
DC power supply 24 V/5 A for IMS conveyor belts
DC power supply 24 V/5 A for IMS conveyor belts LM9672
1
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
Media:
1
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations
Interactive Lab Assistant: IMS 1.5 Conveyor Belt with PLC and Processing Stations SO2805-5N
1
QuickChart IMS 1.5 Cyber-physical conveyor belt system
QuickChart IMS 1.5 Cyber-physical conveyor belt system SO6200-2P
1
QuickChart, IMS 4 Mechatronics Assembly sub-system
QuickChart, IMS 4 Mechatronics Assembly sub-system SO6200-1D
Additionally recommended:
1
Compressor, low-noise
Compressor, low-noise SE2902-9L
1
Tubing and accessory set for mechatronics systems
Tubing and accessory set for mechatronics systems LM9670
1
Set of Allen keys
Set of Allen keys LM9716
1
SybaPro mobile IMS experiment trolley with experiment frame, 1200 mm, 2 levels
SybaPro mobile IMS experiment trolley with experiment frame, 1200 mm, 2 levels ST7200-3T
1
Monitor holder for flat screen monitor of weight up to 10kg, DIN A4, VESA 75/100
Monitor holder for flat screen monitor of weight up to 10kg, DIN A4, VESA 75/100 ST8010-4K
1
Protective cover for 1200mm wide IMS experiment trolleys with training panel
Protective cover for 1200mm wide IMS experiment trolleys with training panel ST8010-8L

In areas where there are high levels of humidity the membrane dryer

with water trap should be used to avoid...   more

1
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap
IDG3 membrane dryer with rapid coupling and filter AF20 with water trap LM9671
Optional Accessories:
1
Touch Panel KTP700 Basic Trainer Package
Touch Panel KTP700 Basic Trainer Package CO3713-4Q
IMS/IPA Tester and Fault Simulator
1
IMS/IPA test and fault simulator
IMS/IPA test and fault simulator CO3713-7V
2
25-pin serial interface cable, Sub-D plug/socket
25-pin serial interface cable, Sub-D plug/socket LM9061
1
QuickChart IMS test and fault simulator
QuickChart IMS test and fault simulator SO6200-1Z
