CSY 3 Fail-safe PLC/PROFIsafe

CSY 3 Fail-safe PLC/PROFIsafe

Fail-safe signal modules monitor input and output signals. The CPU checks that the control system is operating correctly by means of regular self-tests, command tests as well as logical and real-time program sequence control. In addition, peripherals are monitored by polling for watchdog signals.

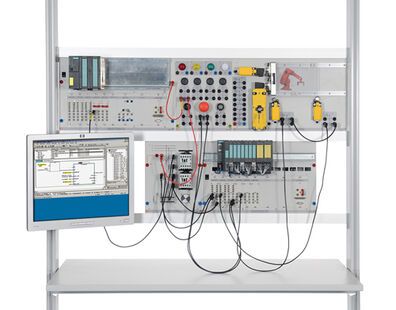

Equipment set comprising the following:
1
Protective gate with safety position switch
Protective gate with safety position switch CO3715-7G
1
SIMATIC ET200S Profibus, Profisafe, 16DI, 16DO, 4/8FDI, 4FDO, 24V/ 6A supply
SIMATIC ET200S Profibus, Profisafe, 16DI, 16DO, 4/8FDI, 4FDO, 24V/ 6A supply CO3713-6F
1
SIMATIC S7-315F-2 PN/DP, 16 DI, 16 DO, 4AE, 2AA, Profibus, 24V/6A power supply
SIMATIC S7-315F-2 PN/DP, 16 DI, 16 DO, 4AE, 2AA, Profibus, 24V/6A power supply CO3713-8K
1
Switches and buttons for contactor controls
Switches and buttons for contactor controls CO3209-1B
1
Safety overload unit with working motor
Safety overload unit with working motor CO3715-7L
1
PLC-S7 PC-adapter with USB/MPI converter
PLC-S7 PC-adapter with USB/MPI converter SO3713-5E
Software:
1
Software for training systems 1x STEP 7, S7-Graph, S7-SCL, PLC-Sim(D,GB,F,E,I)
Software for training systems 1x STEP 7, S7-Graph, S7-SCL, PLC-Sim(D,GB,F,E,I) SO6002-1Q
Media:
1
Interactive Lab Assistant: CSY3 Safety systems with failsafe PLC
Interactive Lab Assistant: CSY3 Safety systems with failsafe PLC SO2800-4H
1
CLC30 Grundlagen SPS, STEP 7-Grundwissen, 5 Handbücher (D)
CLC30 Grundlagen SPS, STEP 7-Grundwissen, 5 Handbücher (D) SO5155-1H
The two manuals are already in PDF format on the CD-ROM containing the STEP 7 programming software and can be omitted, if necessary.
1
CLC30, PLC fundamentals, SIMATIC documentation on DVD (D,GB,F,E)
CLC30, PLC fundamentals, SIMATIC documentation on DVD (D,GB,F,E) SO5155-1N
Accessories:
1
Set of safety measurement cables, 4mm (30 leads)
Set of safety measurement cables, 4mm (30 leads) SO5148-2H
10
Safety connecting plug 4mm with tap (2x), white, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), white, 1000V/32A CAT II SO5126-3X
3
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II SO5126-3U
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Connection cable for PROFIBUS, per metre
Connection cable for PROFIBUS, per metre LM9181
2
Connection plugs for PROFIBUS with PG socket and terminating resistor
Connection plugs for PROFIBUS with PG socket and terminating resistor LM9182
1
Wire stripper for PROFIBUS cables
Wire stripper for PROFIBUS cables LM9184
1
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm
Mobile aluminium experiment stand, 3 levels, power strip with 6 sockets, 1250x700x1995mm ST7200-3A
1
Protection cover for three-level experiment trolleys
Protection cover for three-level experiment trolleys ST8010-9Y
