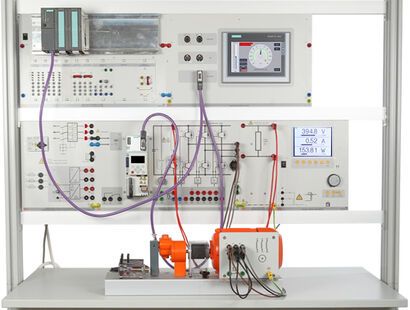

CLP 20 Open-loop control of drive systems

CLP 20 Open-loop control of drive systems

Today automation technology is becoming more and more tied up with drive technology. Concurrently programmable logic controls are normally used as the overriding control system. In addition to the possibility of controlling the drive amplifier via digital and analog inputs and outputs, the use of a fieldbus even provides the possibility of having the process data and parameters read from or written into the drive amplifier.

Equipment set comprising the following:
1
Frequency converter 0.75kW (Lenze 8400)
Frequency converter 0.75kW (Lenze 8400) CO3636-5G
1
PROFIBUS DP interface module for frequency converter Lenze 8400
PROFIBUS DP interface module for frequency converter Lenze 8400 LM8932
1
Brake resistor 0.2kW for frequency converters
Brake resistor 0.2kW for frequency converters CO3636-5V
1
Three-phase asynchronous motor, 0.3kW n=1400 (230V/400V)
Three-phase asynchronous motor, 0.3kW n=1400 (230V/400V) SE2673-1K
1
Rubber coupling sleeve, 0.3kW
Rubber coupling sleeve, 0.3kW SE2662-2A
1
Coupling guard, 0.1/0.3kW, transparent
Coupling guard, 0.1/0.3kW, transparent SE2662-7B
1
Gear with operatingarm, 0.3kW
Gear with operatingarm, 0.3kW SE2664-1A
1
Mechanical sensor
Mechanical sensor SE2664-1F
1
Inductive sensor
Inductive sensor SE2664-1J
1
Capacitive sensor
Capacitive sensor SE2664-1M
1
Optical sensor
Optical sensor SE2664-1Q
1
Touch panel TP700 Comfort Trainer Package
Touch panel TP700 Comfort Trainer Package CO3713-4P
S7-1500 PLC control system with accessories:
1
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply
SIMATIC S7-1516-3 PN/DP 32 DE, 32 DA, 8 AE, 4 AA, 24V / 6 A power supply CO3713-8R
Media:
1
Manual CLP 20, Controlling electric drive systems
Manual CLP 20, Controlling electric drive systems SH5004-6L
1
QuickChart Siemens SPS S7-1500 Board
QuickChart Siemens SPS S7-1500 Board SO6200-5K
Software:
1
USB diagnostic adapter for Lenze 8400 frequency converter
USB diagnostic adapter for Lenze 8400 frequency converter LM8929
Power supply:
1
Universal power supply for electrical machines
Universal power supply for electrical machines CO3212-5U
Measuring instruments:
1
Digital/analog multimeter, wattmeter, power-factor incl. software
Digital/analog multimeter, wattmeter, power-factor incl. software CO5127-1Z
Accessories:
1
Set of safety measurement cables, 4mm (30 leads)
Set of safety measurement cables, 4mm (30 leads) SO5148-2H
12
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), red, 1000V/32A CAT II SO5126-3U
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II
Safety connecting plug 4mm with tap (2x), green/yellow, 1000V/32A CAT II SO5126-3W
3
Connection cable for PROFIBUS, per metre
Connection cable for PROFIBUS, per metre LM9181
3
Connection plugs for PROFIBUS with PG socket and terminating resistor
Connection plugs for PROFIBUS with PG socket and terminating resistor LM9182
1
Wire stripper for PROFIBUS cables
Wire stripper for PROFIBUS cables LM9184
Additionally recommended
1
Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E)
Servo machine test stand for 0.3kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6V
